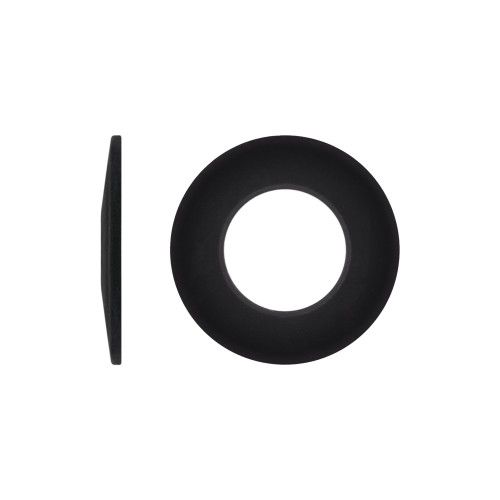

DIN 2093B, Arandela Belleville de diámetro exterior
Descripción
Arandela Belleville de diámetro exterior
REF: 1103100
Material Producto: Acero
Recubrimientos: Negro
Grupo Norma: DIN 2093
Documentos
| Ficha técnica FC-CH-059_ES |
| Ref. | Descripción | Medida | Más info | ||
|---|---|---|---|---|---|
| 1103100008,0 | [DIN 2093B] OD8 | OD8 | |||
| 1103100010,0 | [DIN 2093B] OD10 | OD10 | |||
| 1103100012,5 | [DIN 2093B] OD12,5 | OD12,5 | |||
| 1103100014,0 | [DIN 2093B] OD14 | OD14 | |||
| 1103100016,0 | [DIN 2093B] OD16 | OD16 | |||
| 1103100018,0 | [DIN 2093B] OD18 | OD18 | |||
| 1103100020,0 | [DIN 2093B] OD20 | OD20 | |||
| 1103100022,5 | [DIN 2093B] OD22,5 | OD22,5 | |||
| 1103100025,0 | [DIN 2093B] OD25 | OD25 | |||
| 1103100028,0 | [DIN 2093B] OD28 | OD28 | |||
| 1103100031,5 | [DIN 2093B] OD31,5 | OD31,5 | |||
| 1103100035,5 | [DIN 2093B] OD35,5 | OD35,5 | |||
| 1103100040,0 | [DIN 2093B] OD40 | OD40 | |||
| 1103100045,0 | [DIN 2093B] OD45 | OD45 | |||
| 1103100050,0 | [DIN 2093B] OD50 | OD50 | |||
| 1103100056,0 | [DIN 2093B] OD56 | OD56 | |||
| 1103100063,0 | [DIN 2093B] OD63 | OD63 | |||
| 1103100071,0 | [DIN 2093B] OD71 | OD71 | |||
| 1103100080,0 | [DIN 2093B] OD80 | OD80 | |||
| 1103100090,0 | [DIN 2093B] OD90 | OD90 | |||
| 1103100100,0 | [DIN 2093B] OD100 | OD100 |
